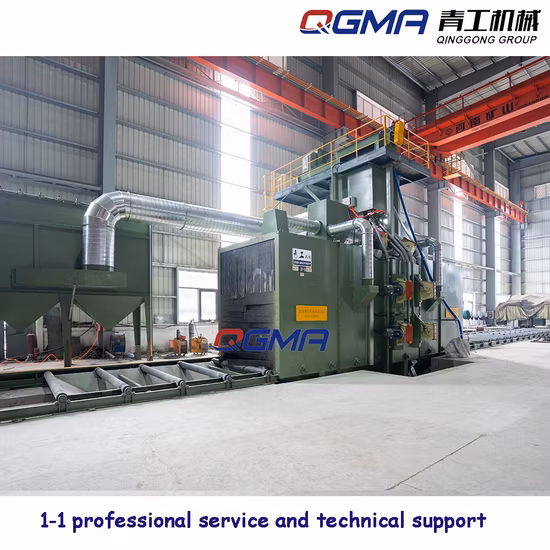

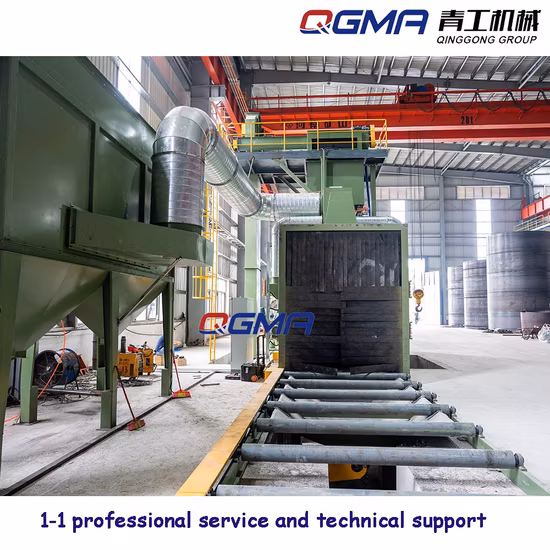

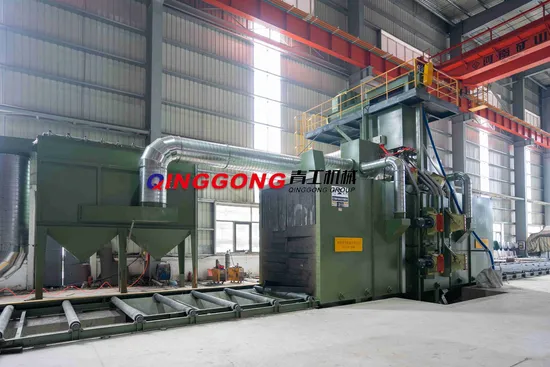

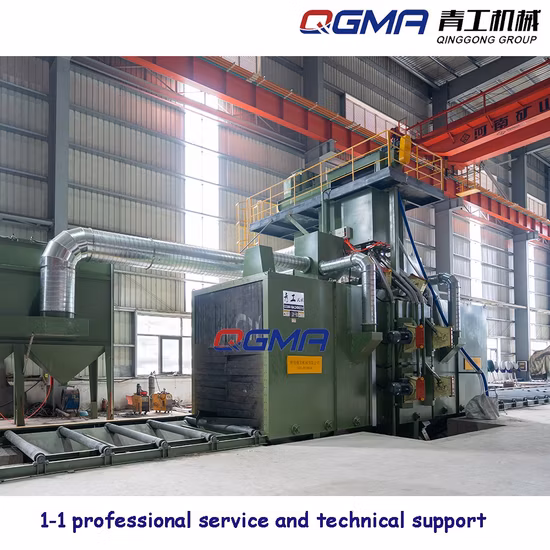

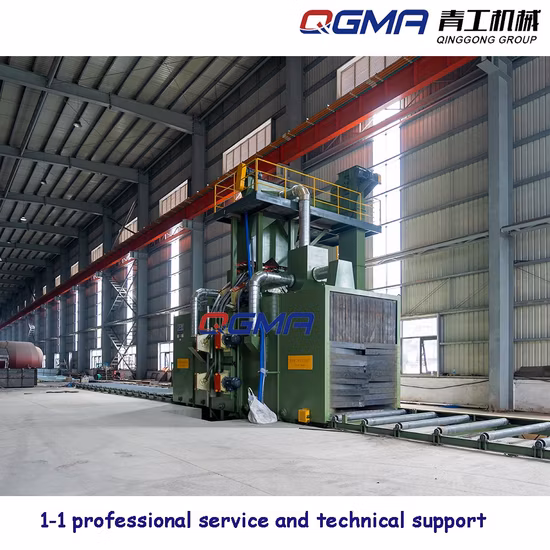

Roller Conveyor Shot Blasting Machine/Steel Plate Shot Blasting Machine

Basic Info.

Model NO.	Q69
Automation	Automatic
Certification	CE
Feature	Rust Removal
Condition	New
Customized	Customized
Use	Polishing, Shot Blasting
Certrification	ISO CE
Color	Customized
Name	Steel Plate Shot Blasting Machine
Transport Package	Nude Packing
Specification	CE
Trademark	bestech
Origin	China
HS Code	8460909000
Production Capacity	100 Sets Per Month

Product Description

Steel Plate shot blasting machine Description:

Q69 series steel structure shot blasting machine is a kind of multi-functional pretreatment equipment for cleaning plate, steel structure, profile, steel pipe and so on.In this way, after the steel is treated by shot blasting, the corrosion resistance of the products and metal components can be improved, the fatigue resistance of the steel plate can be improved, and its service life can be prolonged.

1.Roller conveyor

The roller table is divided into indoor conveying roller table and loading and unloading section conveying roller table (frequency control). The high chromium wear - resistant sleeve is used to protect the roller table from projectile attack.

2.Cleaning Chamber

The cleaning room is of large capacity chamber type box structure, and the wall inside the chamber is lined with special wear-resistant protective plate. The cleaning work is carried out in a closed capacity chamber

3.elevator

The bucket elevator consists of cycloidal needle wheel reducer, upper and lower rollers, conveyor belt, hopper, closed barrel, check device and tensioning device.

4.Separator

It is mainly composed of reduction gear, screw conveyor and separation device.Secondary separation function (pure pill, mixed pill and sand mixture) BE curtain structure.

5.turbine Impeller

The high efficiency suspension centrifugal shot blasting device is adopted, which is mainly composed of rotating mechanism, impeller, housing, directional sleeve, shot separating wheel and guard plate.

6.Electric control

The electrical control system adopt the conventional control to realize the control of the whole machine, adopt the domestic production of high quality electrical components, has the advantages of high reliability and easy maintenance, etc., the main circuit by miniature circuit breaker and thermal relay to realize the short circuit of each motor, the lack of phase, overload protection.And with an emergency stop switch, convenient emergency shutdown, prevent the expansion of the accident.

7.Dust removal system

It is equipped with a pulse blowing back cartridge filter dust collector, which is composed of shell, filter barrel, pulse control instrument, fan and pipe, etc.Dust is discharged in the upper air after being treated by a dust collector, with the emission concentration ≤120mg/m3.

Technical Parameter Steel Plate Shot blasting Machine

Name			Q698	Q6910	Q6912	Q6915	Q6920	Q6925	Q6930	Q6935
cleaningdimention	plate	length(mm)	2000-9000	2000-9000	3000-9000	3000-9000	4000-12000	4000-12000	6000-12000	6000-12000
		width(mm)	800	1000	1200	1500	2000	2500	3000	3500
		tkickness(mm)	2-35	2-35	2-40	2-45	3-50	4-60	5-60	6-60
	section steel	width(mm)	800	800	1000	1400	1800	2000	2500	3000
	section steel	height(mm)	≤1600	≤1600	≤1800	≤2000	≤2000	≤2500	≤2500	≤3000
speed		m/min	0.5-3	0.5-3	0.5-2	0.5-2.5	0.5-2.5	0.5-2	0.5-2.5	0.5-3
blasting quantity		kg/min	4*250	4*250	4*250	4*250	4*250	6*250	6*250	6*250
section steel abrsive caacity		kg/min	8*250	8*250	10*250	10*250	10*250	12*250	12*250	16*250
ventilation capacity		m3/h	8000-14500	9000-14500	12000-18000	13000-24000	13000-24000	16000-28000	16000-28000	18000-28000

Roller Conveyor Shot Blasting Machine/Steel Plate Shot Blasting Machine

Q: How many days do you need to produce this steel plate shot blasting machine?
A: It depends on the size of the machine. Usually 15-25 days for shot blasting machine and sand casting machine.45days for production line equipments
Q: How to control your quality ?
A: First of all, we have professional technical team to design the machine. And we have strict production system, the quality inspection department will check the quality regularly.For the smaller machine we will install the machine at our workshop to make sure it can work well.For the bigger machine, we will install the machine for our customers until it can work wellQ: What's your machine quality guarantee?
A: Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition
Q: Can you instal the machine overseas?How long will it take?
A: YES, we have rich-experienced install team to instal the machine for our customers worldwide.
